Heavy-Duty Truck LED Clearance/Marker Lamps by VSM

Vehicle Safety Manufacturing offers the widest assortment of LED Clearance/Marker lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include long-life LEDs meaning no more replacing broken bulbs. Learn more about our individual LED clearance and marker lamps and lighting kits below and feel free to contact us if you have any questions or require a customized solution.

Amber and Red LED Clearance/Marker Lamp Kits

VSM1015AK 2.5" Amber Clearance/Marker Lamp Kit

VSM1015AK 2.5-inch 4 diode amber clearance/marker lamp

Click image to enlarge...

More Images

VSM1015AK 2.5-inch 4 diode amber clearance/marker lamp VSM1015AK 2.5-inch 4 diode amber clearance/marker lamp VSM1015AK 2.5-inch 4 diode amber clearance/marker lamp VSM9122 2-prong plug included

Click images to enlarge...

Features

  • Product Dimensions
  • 2.5” (W) x 2.5” (H) x .7” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM1015A Lamp
  • Includes VSM9119 Grommet
  • Includes VSM9122 Pigtail
  • Other Product Details
  • Watertight Construction
  • Four Encapsulated Diodes
  • Current Draw .060 A at 14V
  • Operates At Both Polarities
  • 3 Year Warranty

VSM1015K 2.5" Red Clearance/Marker Lamp Kit

VSM1015K 2.5-inch 4 diode amber clearance/marker lamp

Click image to enlarge...

More Images

VSM1015K 2.5-inch 4 diode amber clearance/marker lamp VSM1015K 2.5-inch 4 diode amber clearance/marker lamp VSM1015K 2.5-inch 4 diode amber clearance/marker lamp VSM9122 2-prong plug included

Click images to enlarge...

Features

  • Product Dimensions
  • 2.5” (W) x 2.5” (H) x .7” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM1015 Lamp
  • Includes VSM9119 Grommet
  • Includes VSM9122 Pigtail
  • Other Product Details
  • Watertight Construction
  • Four Encapsulated Diodes
  • Current Draw .060 A at 14V
  • Operates At Both Polarities
  • 3 Year Warranty

VSM1025AK 2.5" Amber Clearance/Marker Lamp Kit

VSM1025AK 2.5-inch 4 diode amber clearance/marker lamp

Click image to enlarge...

More Images

VSM1025AK 2.5-inch 4 diode amber clearance/marker lamp VSM1025AK 2.5-inch 4 diode amber clearance/marker lamp VSM1025AK 2.5-inch 4 diode amber clearance/marker lamp VSM9122 2-prong plug included

Click images to enlarge...

Features

  • Product Dimensions
  • 2.5” (W) x 2.5” (H) x .7” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM1025A Lamp
  • Includes VSM9119 Grommet
  • Includes VSM9122 Pigtail
  • Other Product Details
  • Reflex Lens
  • Watertight Construction
  • Four Encapsulated Diodes
  • Current Draw .060 A at 14V
  • Operates At Both Polarities
  • 3 Year Warranty

VSM1025K 2.5" Red Clearance/Marker Lamp Kit

VSM1025K 2.5-inch 4 diode red clearance/marker lamp

Click image to enlarge...

More Images

VSM1025K 2.5-inch 4 diode red clearance/marker lamp VSM1025K 2.5-inch 4 diode red clearance/marker lamp VSM1025K 2.5-inch 4 diode red clearance/marker lamp VSM9122 2-prong plug included

Click images to enlarge...

Features

  • Product Dimensions
  • 2.5” (W) x 2.5” (H) x .7” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM1025 Lamp
  • Includes VSM9119 Grommet
  • Includes VSM9122 Pigtail
  • Other Product Details
  • Reflex Lens
  • Watertight Construction
  • Four Encapsulated Diodes
  • Current Draw .060 A at 14V
  • Operates At Both Polarities
  • 3 Year Warranty

VSM1035AK 2" Red Clearance/Marker Lamp Kit

VSM1035AK 2-inch 4 diode Red clearance/marker lamp

Click image to enlarge...

More Images

VSM1035AK 2-inch 4 diode Red clearance/marker lamp VSM1035AK 2-inch 4 diode Red clearance/marker lamp VSM1035AK 2-inch 4 diode Red clearance/marker lamp VSM9122 2-prong plug included

Click images to enlarge...

Features

  • Product Dimensions
  • 2” (W) x 2” (H) x .68” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM1035A Lamp
  • Includes VSM9139 Grommet
  • Includes VSM9122 Pigtail
  • Other Product Details
  • Watertight Construction
  • Four Encapsulated Diodes
  • Current Draw .060 A at 14V
  • Operates At Both Polarities
  • 3 Year Warranty

VSM1035K 2" Amber Clearance/Marker Lamp Kit

VSM1035K 2-inch 4 diode amber clearance/marker lamp

Click image to enlarge...

More Images

VSM1035K 2-inch 4 diode amber clearance/marker lamp VSM1035K 2-inch 4 diode amber clearance/marker lamp VSM1035K 2-inch 4 diode amber clearance/marker lamp VSM9122 2-prong plug included

Click images to enlarge...

Features

  • Product Dimensions
  • 2” (W) x 2” (H) x .68” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Product Wiring
  • Two-Contact Power Input
  • Includes VSM1035 Lamp
  • Includes VSM9139 Grommet
  • Includes VSM9122 Pigtail
  • Other Product Details
  • Watertight Construction
  • Four Encapsulated Diodes
  • Current Draw .060 A at 14V
  • Operates At Both Polarities
  • 3 Year Warranty

Round LED Clearance/Marker Lamps

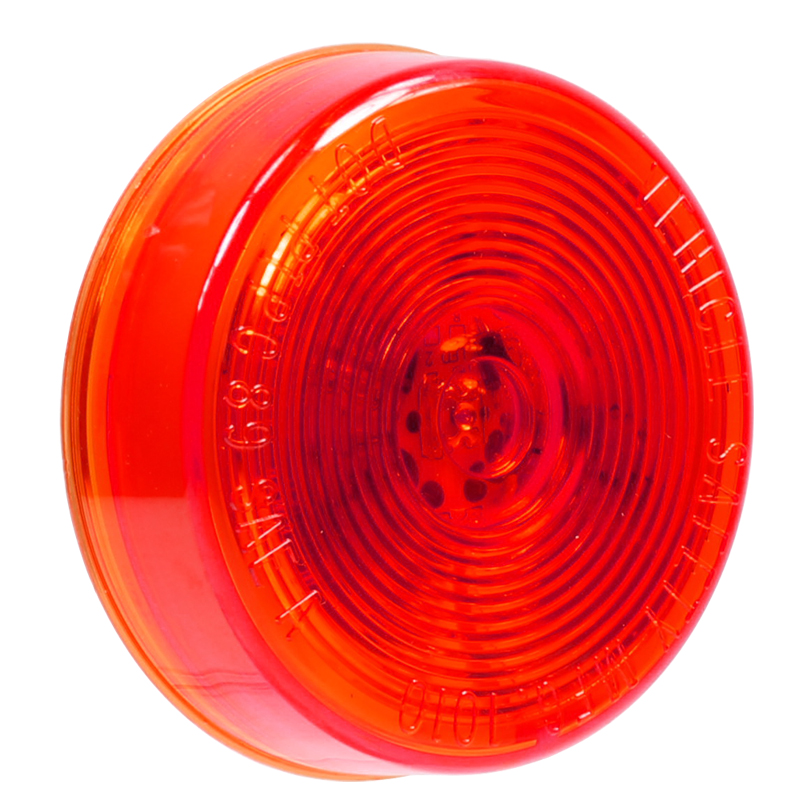

VSM1015 2.5" Red Clearance/Marker Lamp

VSM1015 2.5-inch 4 diode Red clearance/marker lamp

Click image to enlarge...

VSM1015AX 2.5" Amber Clearance/Marker Lamp

VSM1015AX 2.5-inch 13 diode Amber clearance/marker lamp

Click image to enlarge...

VSM1015X 2.5" Red Clearance/Marker Lamp

VSM1015X 2.5-inch 13 diode Red surface mount clearance/marker lamp

Click image to enlarge...

VSM1015ASF 2.5" Amber Surface Mount Lamp

VSM1015ASF 2.5-inch 4 diode amber surface mount clearance/marker lamp

Click image to enlarge...

VSM1015SF 2.5" Red Surface Mount Lamp

VSM1015SF 2.5-inch 4 diode Red clearance/marker lamp Reflex lens

Click image to enlarge...

VSM1015AF 2.5" Amber Flange Mount Lamp

VSM1015AF 2.5-inch 4 diode amber flange mount clearance/marker lamp Reflex lens

Click image to enlarge...

VSM1015F 2.5" Red Flange Mount Lamp

VSM1015F 2.5-inch 4 diode Red flange mount clearance/marker lamp Reflex lens

Click image to enlarge...

VSM1025A 2" Amber Clearance/Marker Lamp

VSM1025A 2-inch 4 diode amber clearance/marker lamp with Reflex lens

Click image to enlarge...

VSM1025 2" Red Clearance/Marker Lamp

VSM1025 2-inch 4 diode Red clearance/marker lamp with Reflex lens

Click image to enlarge...

VSM1035A 2" Amber Clearance/Marker Lamp

VSM1035A 2-inch 4 diode amber clearance/marker lamp

Click image to enlarge...

VSM1035 2" Red Clearance/Marker Lamp

VSM1035 2-inch 4 diode Red clearance/marker lamp

Click image to enlarge...

VSM1035AX 2" Amber Clearance/Marker Lamp

VSM1035AX 2-inch 10 diode amber clearance/marker lamp

Click image to enlarge...

VSM1035X 2" Red Clearance/Marker Lamp

VSM1035X 2-inch 10 diode Red clearance/marker lamp

Click image to enlarge...

VSM1035ACX 2" Amber Clearance/Marker Lamp

VSM1035ACX 2-inch 10 diode Amber clearance/marker lamp with clear lens

Click image to enlarge...

VSM1035RCX 2" Red Clearance/Marker Lamp

VSM1035RCX 2-inch 10 diode Red clearance/marker lamp with clear lens

Click image to enlarge...

VSM1035ASF 2" Amber Surface Mount Lamp

VSM1035ASF 2-inch 4 diode Amber surface mount clearance/marker lamp

Click image to enlarge...

VSM1035SF 2" Red Surface Mount Lamp

VSM1035SF 2-inch 4 diode Red surface mount clearance/marker lamp

Click image to enlarge...

VSM1035AF 2" Amber Flange Mount Lamp

VSM1035AF 2-inch 4 diode Amber flange mount clearance/marker lamp

Click image to enlarge...

VSM1035F 2" Red Flange Mount Lamp

VSM1035F 2-inch 4 diode Red flange mount clearance/marker lamp

Click image to enlarge...

Rectangular/Square LED Clearance/Marker Lamps

VSM1255A Amber Bulls Eye Clearance/Marker Lamp

VSM1255A 10 diode Amber Bulls Eye Lamp

Click image to enlarge...

VSM1255 Red Bulls Eye Clearance/Marker Lamp

VSM1255 10 diode Red Bulls Eye Lamp

Click image to enlarge...

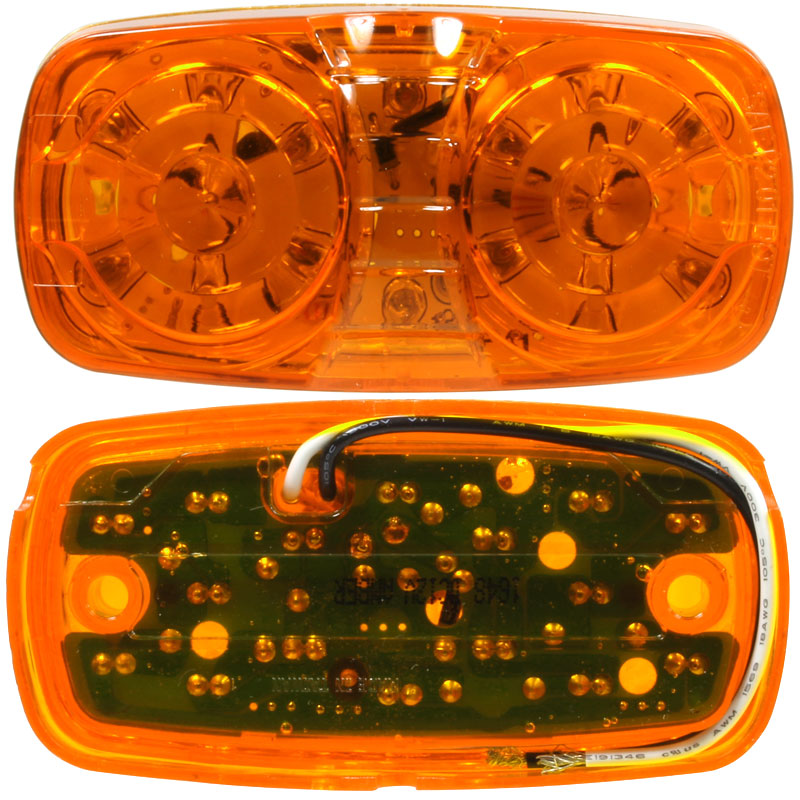

VSM1255AX Amber Bulls Eye Clearance/Marker Lamp

VSM1255AX 16 diode Amber Bulls Eye Lamp

Click image to enlarge...

VSM1255X Red Bulls Eye Clearance/Marker Lamp

VSM1255X 16 diode Red Bulls Eye Lamp

Click image to enlarge...

VSM1505A 2.5" Amber Clearance/Marker Lamp

VSM1505A 2.5-inch 3 diode amber clearance/marker lamp

Click image to enlarge...

VSM1505 2.5" Red Clearance/Marker Lamp

VSM1505 2.5-inch 2 diode Red clearance/marker lamp

Click image to enlarge...

VSM1505W 2.5" White Clearance/Marker Lamp

VSM1505W 2.5-inch 2 diode White clearance/marker lamp

Click image to enlarge...

VSM1505AX 2.5" Amber Clearance/Marker Lamp

VSM1505AX 2.5-inch 8 diode Amber clearance/marker lamp

Click image to enlarge...

VSM1505X 2.5" Red Clearance/Marker Lamp

VSM1505X 2.5-inch 8 diode Red clearance/marker lamp

Click image to enlarge...

VSM1581AK 2.5" Amber Clearance/Marker Lamp

VSM1581AK 2.5-inch 2 diode amber clearance/marker lamp with VSM9381 chrome bracket and VSM9122 pigtail harness

Click image to enlarge...

VSM1581K 2.5" Red Clearance/Marker Lamp

VSM1581K 2.5-inch 2 diode red clearance/marker lamp with VSM9381 chrome bracket and VSM9122 pigtail harness

Click image to enlarge...

VSM1587AK 2.5" Amber Clearance/Marker Lamp

VSM1587AK 2.5-inch 3 diode amber clearance/marker lamp with VSM9387 header mount and VSM9122 pigtail harness

Click image to enlarge...

VSM1587K 2.5" Red Clearance/Marker Lamp

VSM1587K 2.5-inch 3 diode red clearance/marker lamp with VSM9387 header mount and VSM9122 pigtail harness

Click image to enlarge...

VSM1593AK 2.5" Amber Clearance/Marker Lamp

VSM1593AK 2.5-inch 3 diode amber clearance/marker lamp with VSM9393 header mount and VSM9122 pigtail harness

Click image to enlarge...

VSM1593K 2.5" Red Clearance/Marker Lamp

VSM1593K 2.5-inch 3 diode red clearance/marker lamp with VSM9393 header mount and VSM9122 pigtail harness

Click image to enlarge...

VSM1905A 3.87" Amber Clearance/Marker Lamp

VSM1905A 3.87-inch 4 diode Amber clearance/marker lamp

Click image to enlarge...

VSM1905 3.87" Red Clearance/Marker Lamp

VSM1905 3.87-inch 4 diode Red clearance/marker lamp

Click image to enlarge...

VSM1905AX 3.87" Amber Clearance/Marker Lamp

VSM1905AX 3.87-inch 12 diode Amber clearance/marker lamp

Click image to enlarge...

VSM1905X 3.87" Amber Clearance/Marker Lamp

VSM1905X 3.87-inch 12 diode Amber clearance/marker lamp

Click image to enlarge...

VSM1989AK 3.87" Amber Clearance/Marker Lamp

VSM1989AK 3.87-inch 12 diode Amber clearance/marker lamp

Click image to enlarge...

VSM1989K 3.87" Red Clearance/Marker Lamp

VSM1989K 3.87-inch 12 diode red clearance/marker lamp

Click image to enlarge...

ML2K Oblong Clearance/Marker Lamps

VSM2005 LED ML2K Red

VSM2005 ML2K Red LED Lamp with Chrome Bezel

Click image to enlarge...

VSM2005A LED ML2K Amber

VSM2005A ML2K Amber LED Lamp with Chrome Bezel

Click image to enlarge...

VSM2015 LED ML2K Red

VSM2015 ML2K Red LED Lamp with Reflex Lens and Chrome Bezel

Click image to enlarge...

VSM2015A LED ML2K Amber

VSM2015A ML2K Amber LED Lamp with Reflex Lens and Chrome Bezel

Click image to enlarge...

VSM2015RC LED ML2K Red

VSM2015RC ML2K Red LED Lamp with Clear Reflex Lens and Chrome Bezel

Click image to enlarge...

VSM2015AC LED ML2K Amber

VSM2015AC ML2K Amber LED Lamp with Clear Reflex Lens and Chrome Bezel

Click image to enlarge...
