4-Inch Red Lamp Kits and Accessories for Heavy Trucks by VSM

Vehicle Safety Manufacturing offers the widest assortment of LED 4-inch amber auxiliary/parking and red stop/tail/turn signal lamps, and 6-inch amber auxiliary/parking and red stop/tail/turn signal lamps in the OE and aftermarket heavy-duty truck segment to fulfill the needs of customers working in the harshest environments including material handling, construction, agriculture, forestry, mining and other on and off-road equipment and truck applications. VSM's durable, low-voltage lamps meet or exceed SAE and DOT specifications and include long-life LEDs meaning no more replacing broken bulbs. Learn more about our individual lamps and lamp kits below and feel free to contact us if you have any questions or require a customized solution.

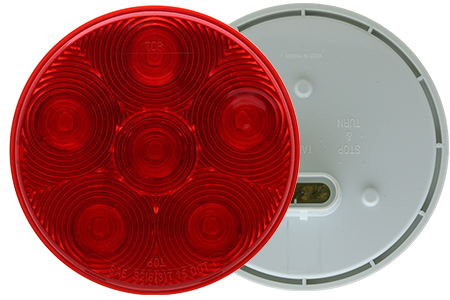

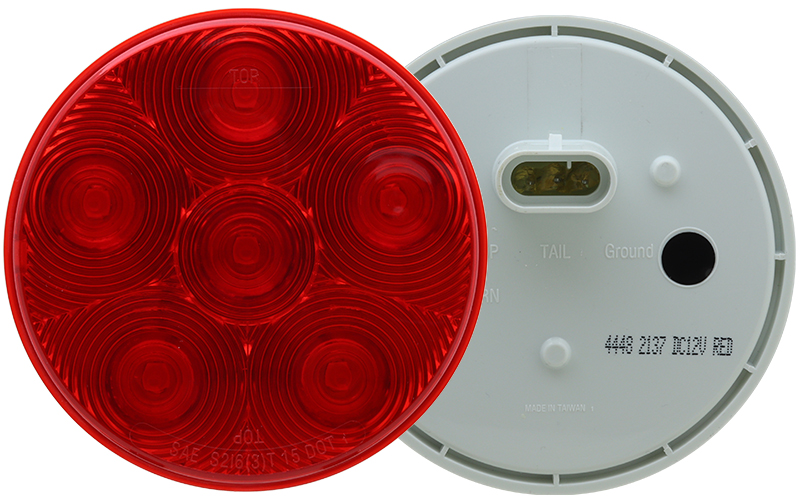

New Product - VSM 4448

An image of a 4-inch LED light for heavy truck applications featuring popular 6-diode design

Click image to enlarge...

Features

  • Lens – Polycarbonate Red
  • Housing – Polycarbonate White
  • Popular 6 Diode SMD Design
  • Terminals greased for added corrosion protection
  • Voltage/AMP 13.5V – 0.300-0.360A ; 0.018-0.22A
  • Conforms to applicable FMVSS 108 requirements

Recommended Accessories

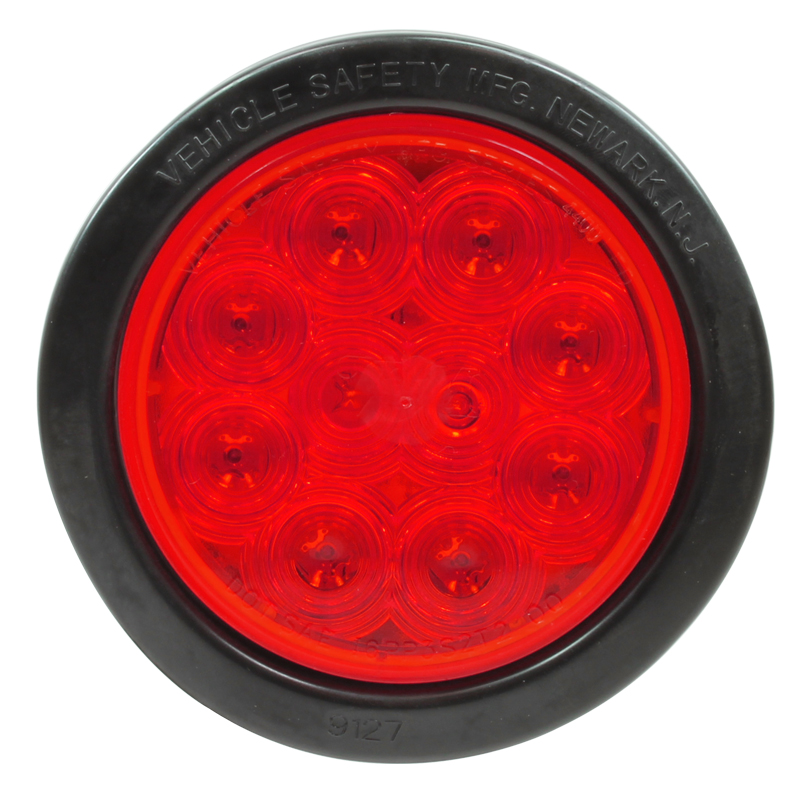

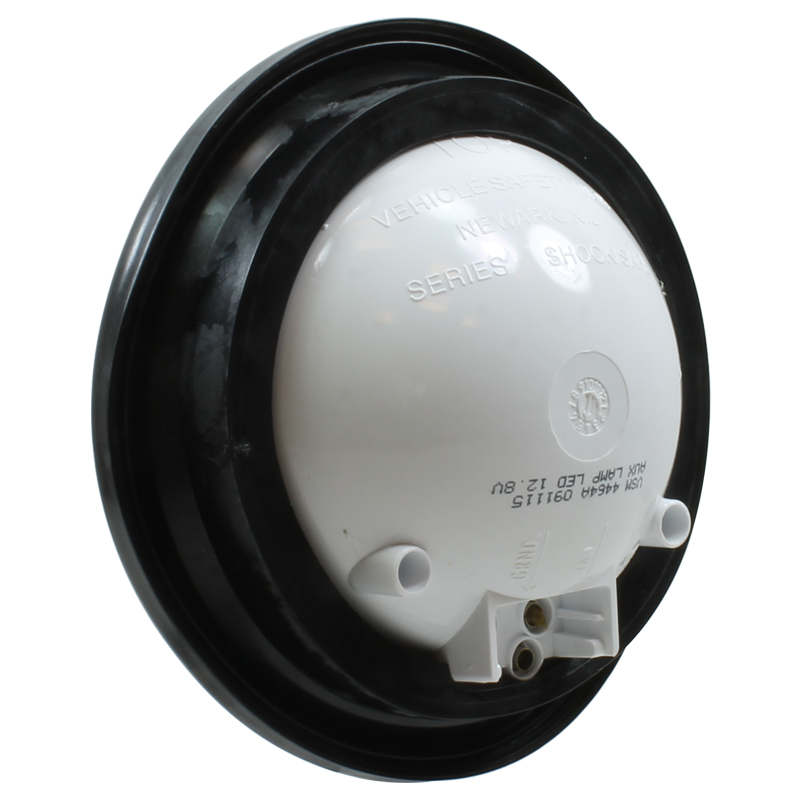

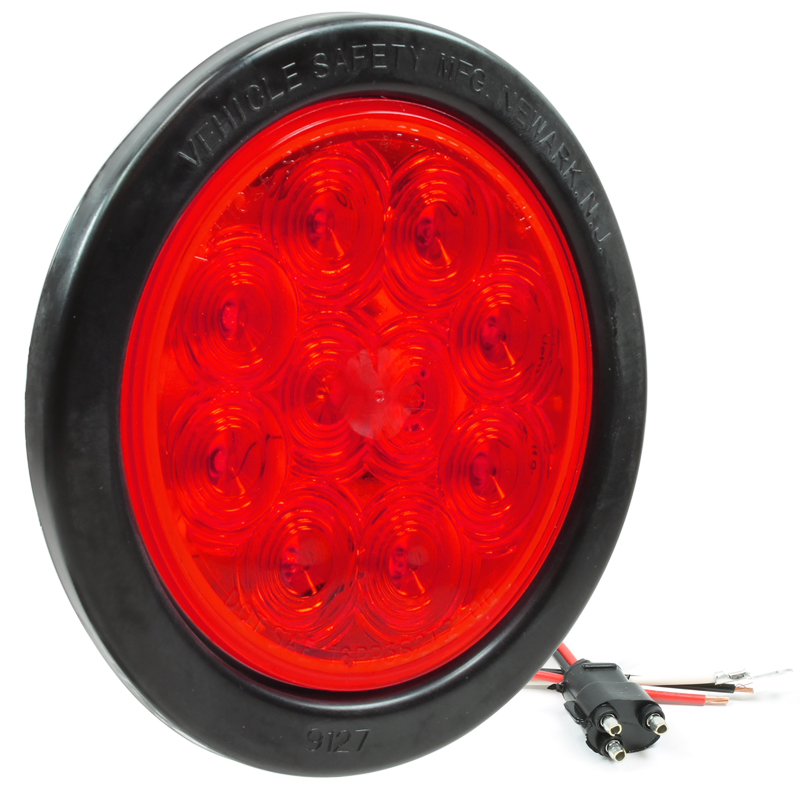

VSM4454 Red S/T/T Lamp with Rubber Grommet

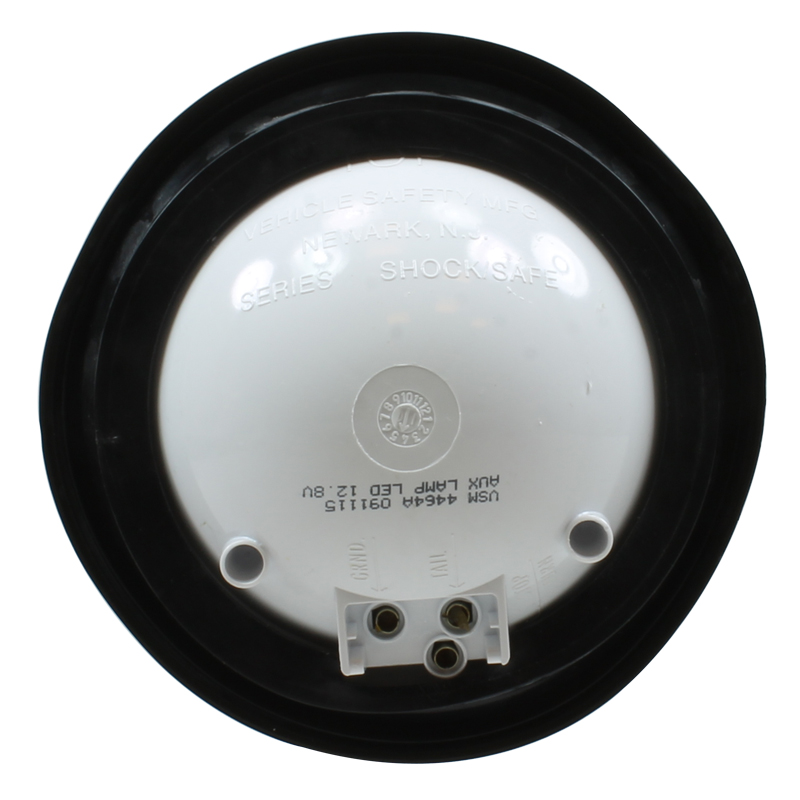

4454 10-Diode Red S/T/T Lamp with Rubber Open-Back Grommet

Click image to enlarge...

More Images

4454 10-Diode Red S/T/T Lamp with Rubber Open-Back Grommet 4454 10-Diode Red S/T/T Lamp with Rubber Open-Back Grommet 4454 10-Diode Red S/T/T Lamp with Rubber Open-Back Grommet 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base

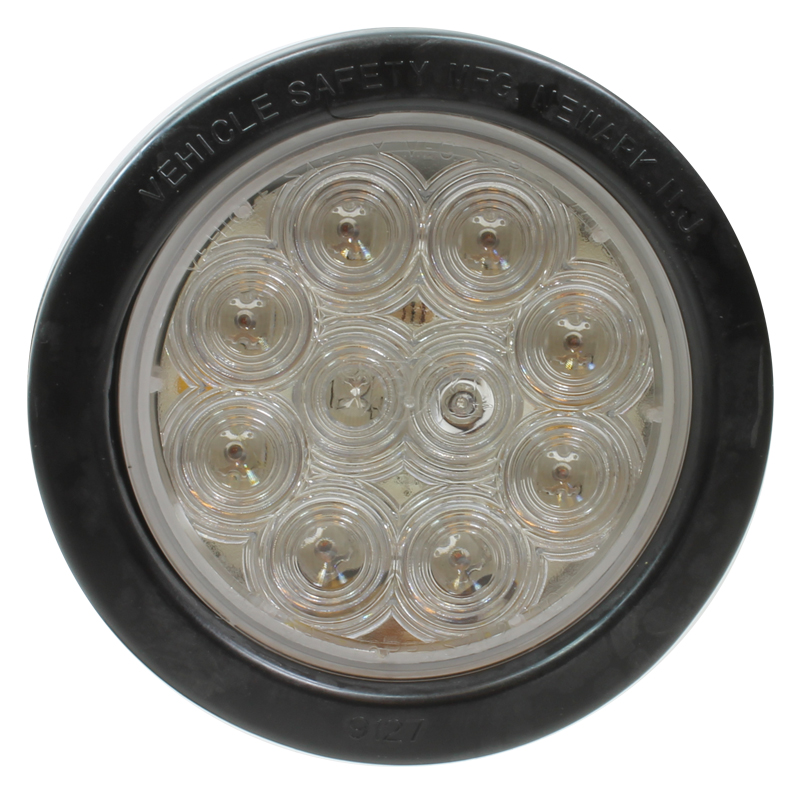

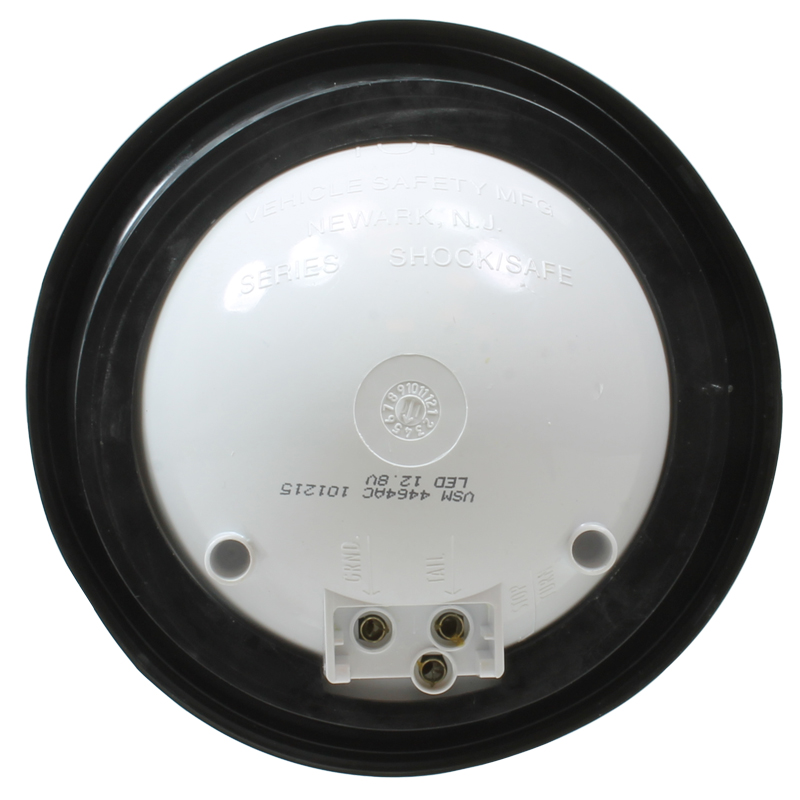

VSM4454RC Red S/T/T Lamp with Rubber Grommet

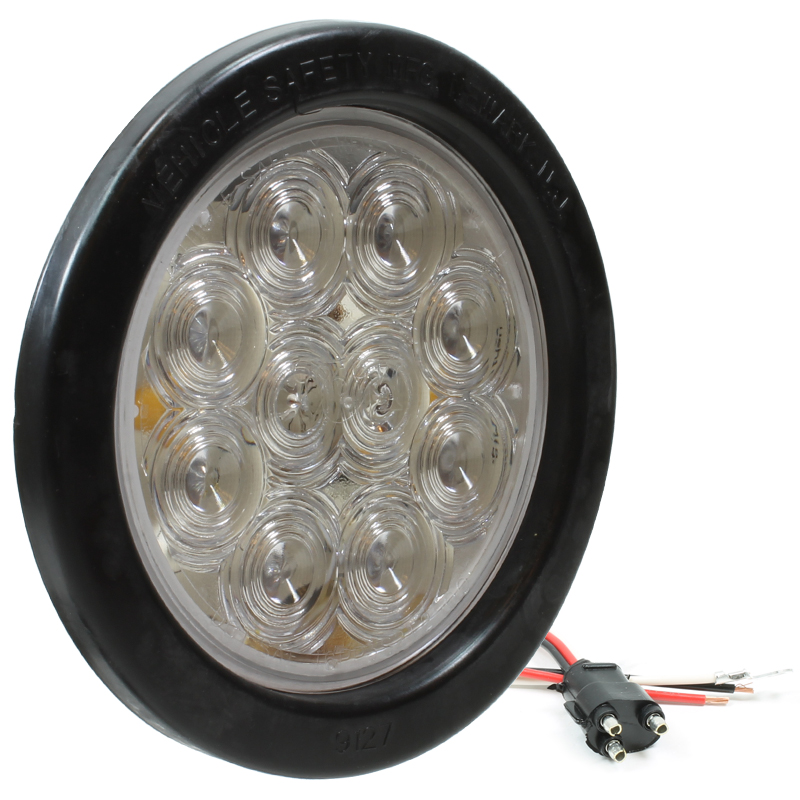

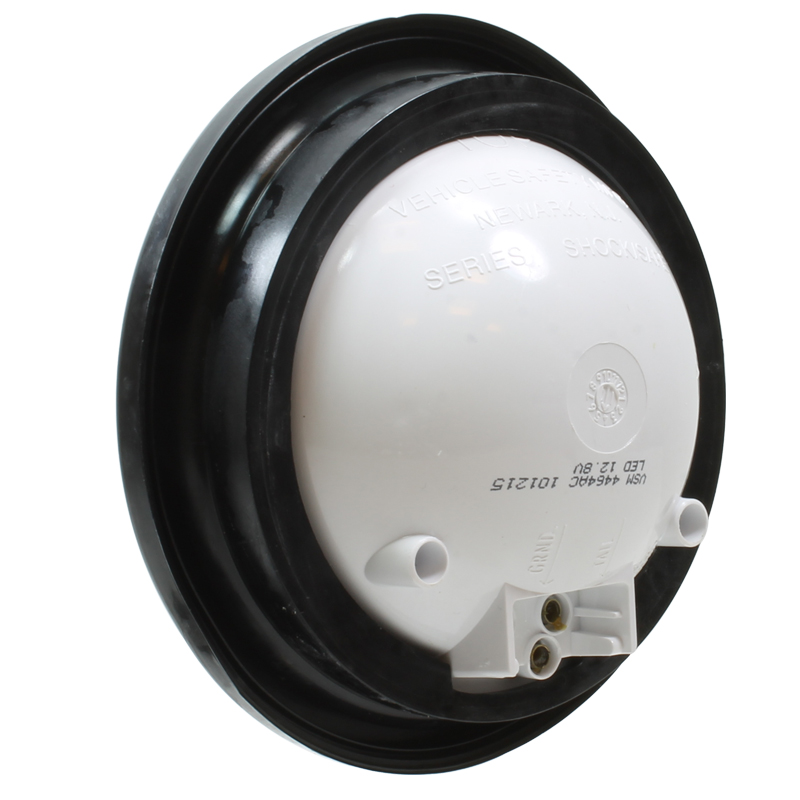

4454RC 10-Diode Red S/T/T Lamp with Clear Lens and Rubber Open-Back Grommet

Click image to enlarge...

More Images

4454RC 10-Diode Red S/T/T Lamp with Clear Lens and Rubber Open-Back Grommet 4454RC 10-Diode Red S/T/T Lamp with Clear Lens and Rubber Open-Back Grommet 4454RC 10-Diode Red S/T/T Lamp with Clear Lens and Rubber Open-Back Grommet 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base

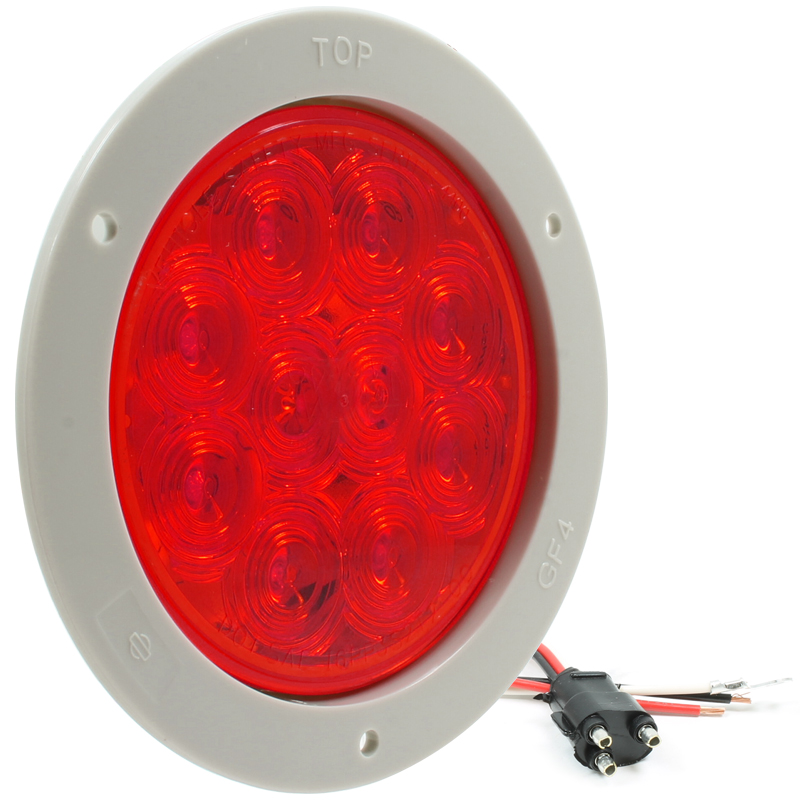

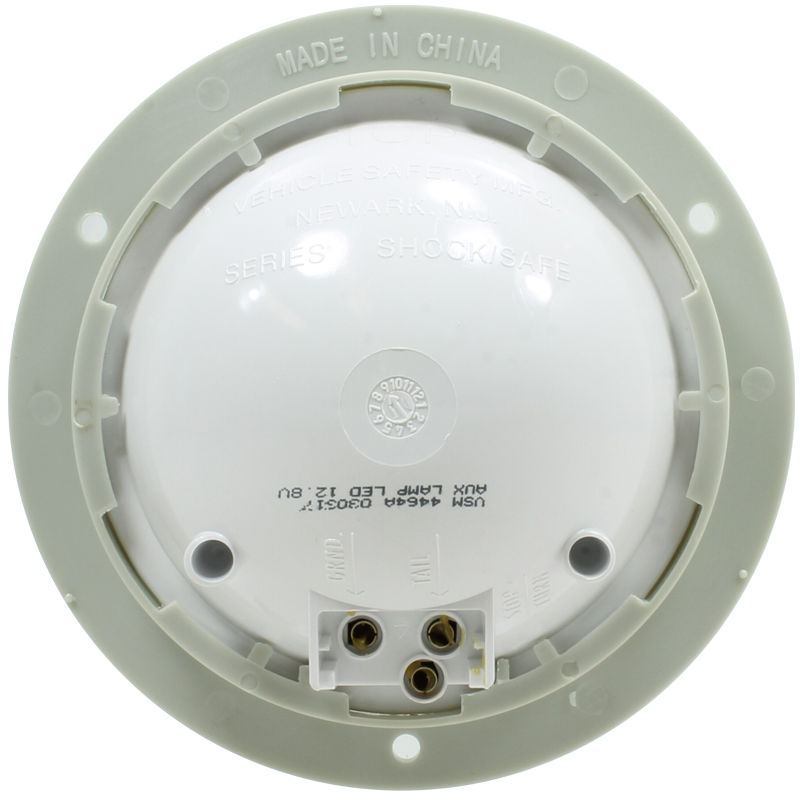

VSM4457 Red S/T/T Lamp with Grey Flange Mount

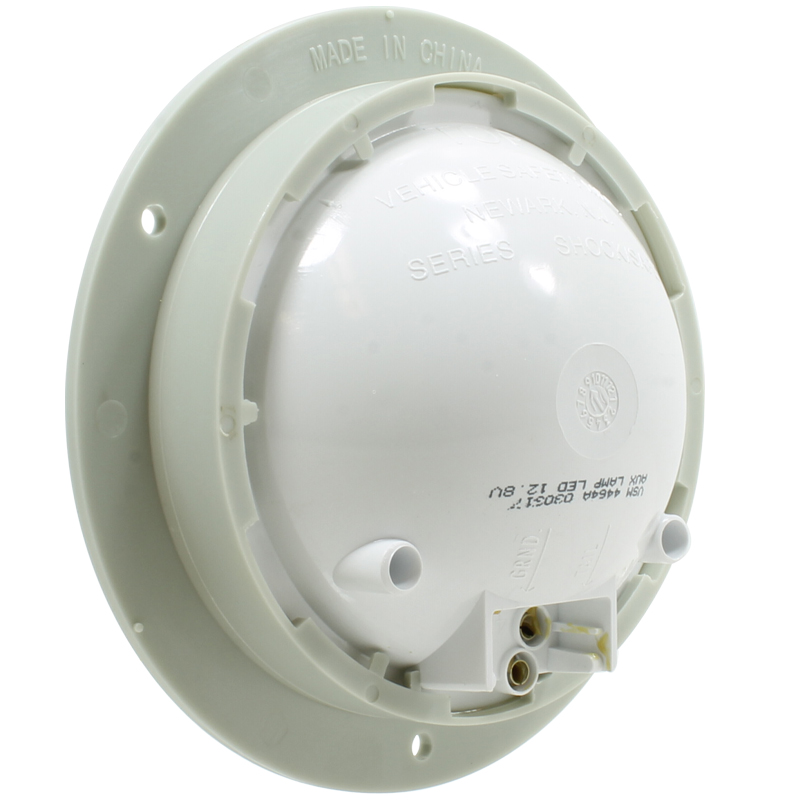

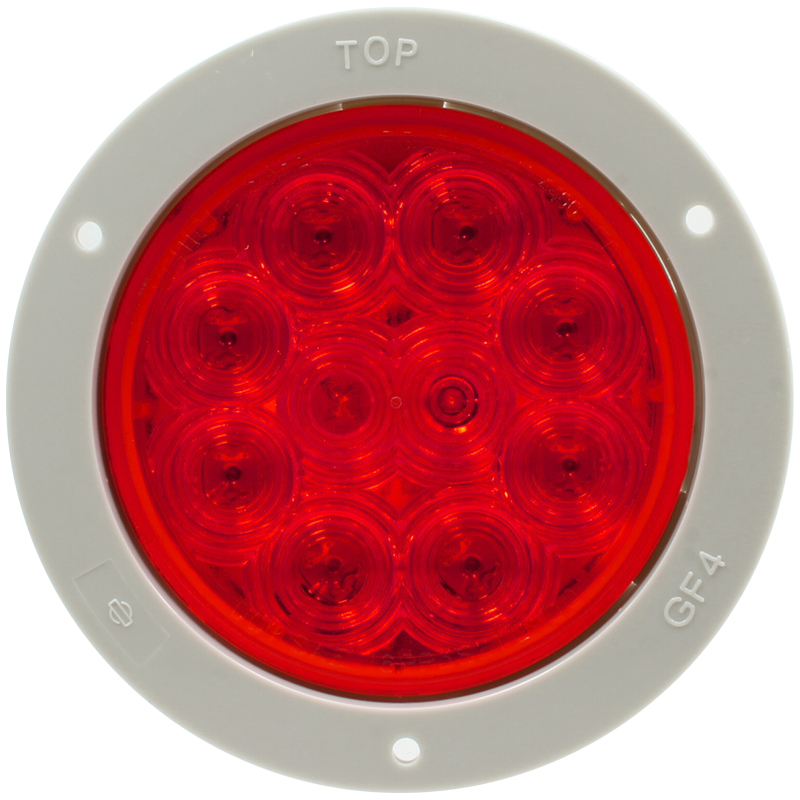

4457 10-Diode Red S/T/T Lamp with Grey Flange Mount

Click image to enlarge...

More Images

4457 10-Diode Red S/T/T Lamp with Grey Flange Mount 4457 10-Diode Red S/T/T Lamp with Grey Flange Mount 4457 10-Diode Red S/T/T Lamp with Grey Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .42 A at 13.5V
  • Includes VSM4464 Lamp
  • Includes VSM9131 Grey Flange
  • Includes VSM9124 Pigtail
  • 3 Year Warranty

VSM4457RC Red S/T/T Lamp with Grey Flange Mount

4457RC 10-Diode Red S/T/T Lamp with Clear Lens and Grey Flange Mount

Click image to enlarge...

More Images

4457RC 10-Diode Red S/T/T Lamp with Clear Lens and Grey Flange Mount 4457RC 10-Diode Red S/T/T Lamp with Clear Lens and Grey Flange Mount 4457RC 10-Diode Red S/T/T Lamp with Clear Lens and Grey Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .42 A at 13.5V
  • Includes VSM4464 Lamp
  • Includes VSM9131 Grey Flange
  • Includes VSM9124 Pigtail
  • 3 Year Warranty

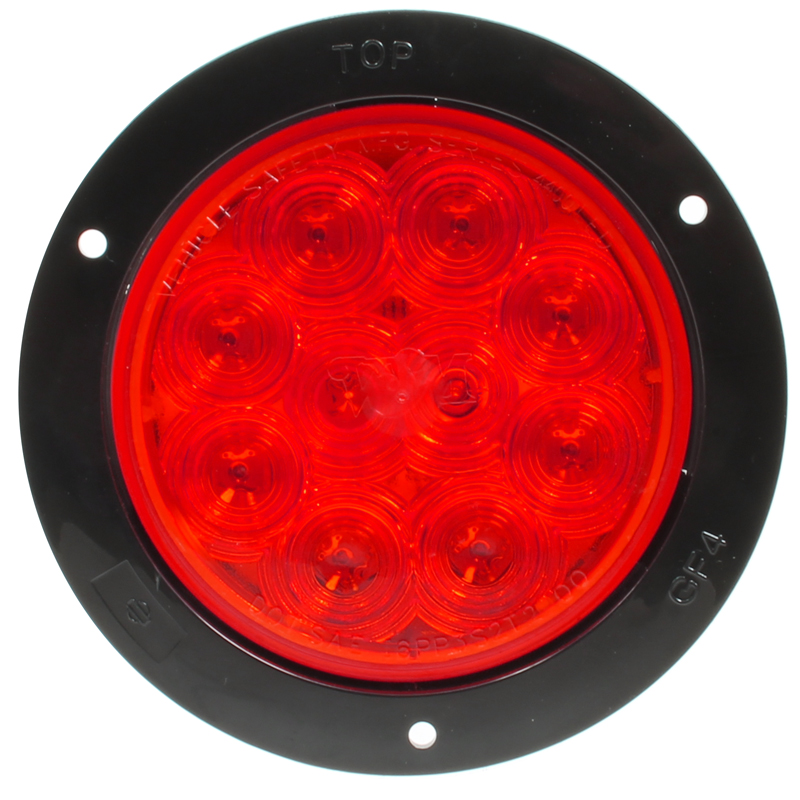

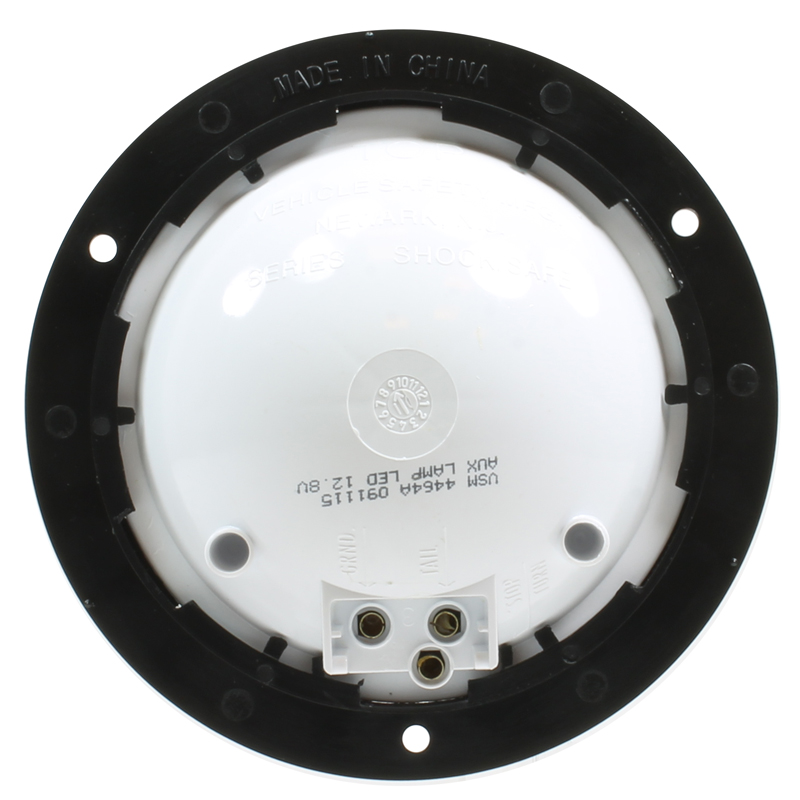

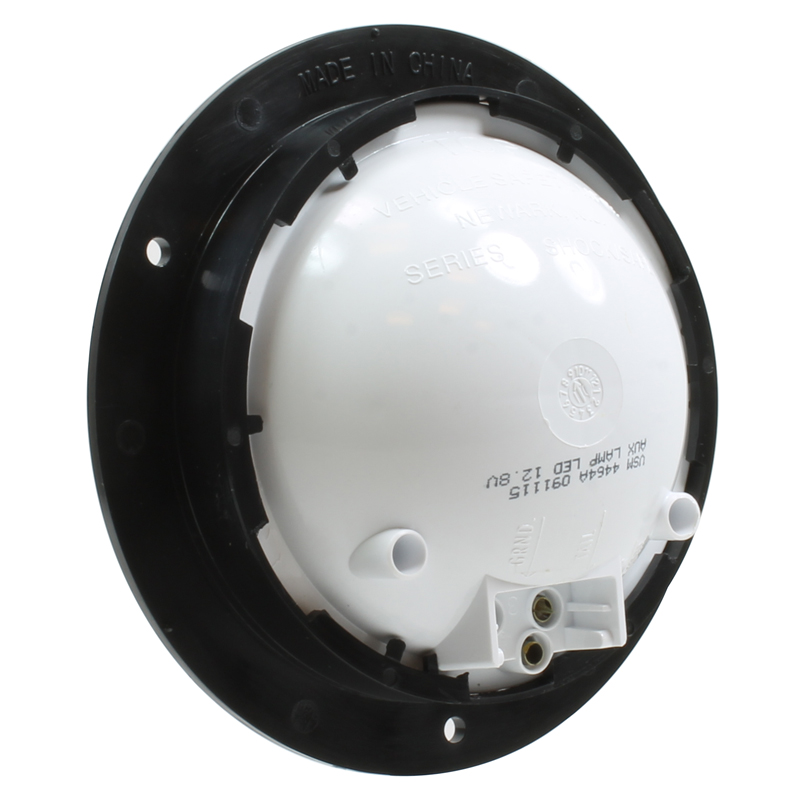

VSM4458 Red S/T/T Lamp with Black Flange Mount

4458 10-Diode Red S/T/T Lamp with Black Flange Mount

Click image to enlarge...

More Images

4458 10-Diode Red S/T/T Lamp with Black Flange Mount 4458 10-Diode Red S/T/T Lamp with Black Flange Mount 4458 10-Diode Red S/T/T Lamp with Black Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .42 A at 13.5V
  • Includes VSM4464 Lamp
  • Includes VSM9132 Black Flange
  • Includes VSM9124 Pigtail
  • 3 Year Warranty

VSM4458RC Red S/T/T Lamp with Black Flange Mount

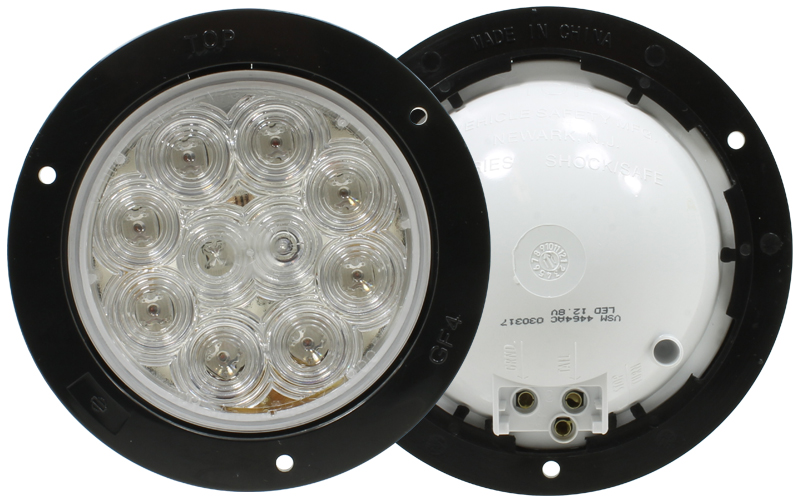

4458RC 10-Diode Red S/T/T Lamp with Clear Lens and Black Flange Mount

Click image to enlarge...

More Images

4458RC 10-Diode Red S/T/T Lamp with Clear Lens and Black Flange Mount 4458RC 10-Diode Red S/T/T Lamp with Clear Lens and Black Flange Mount 4458RC 10-Diode Red S/T/T Lamp with Clear Lens and Black Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Other Product Details
  • 10 Super-Flux Diodes
  • Current Draw .42 A at 13.5V
  • Includes VSM4464 Lamp
  • Includes VSM9132 Black Flange
  • Includes VSM9124 Pigtail
  • 3 Year Warranty

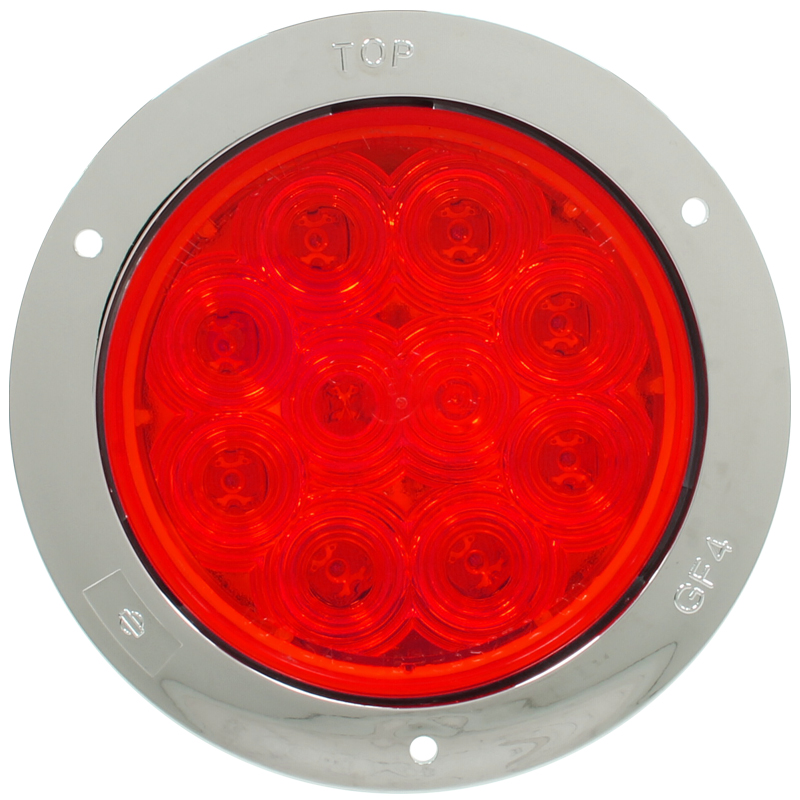

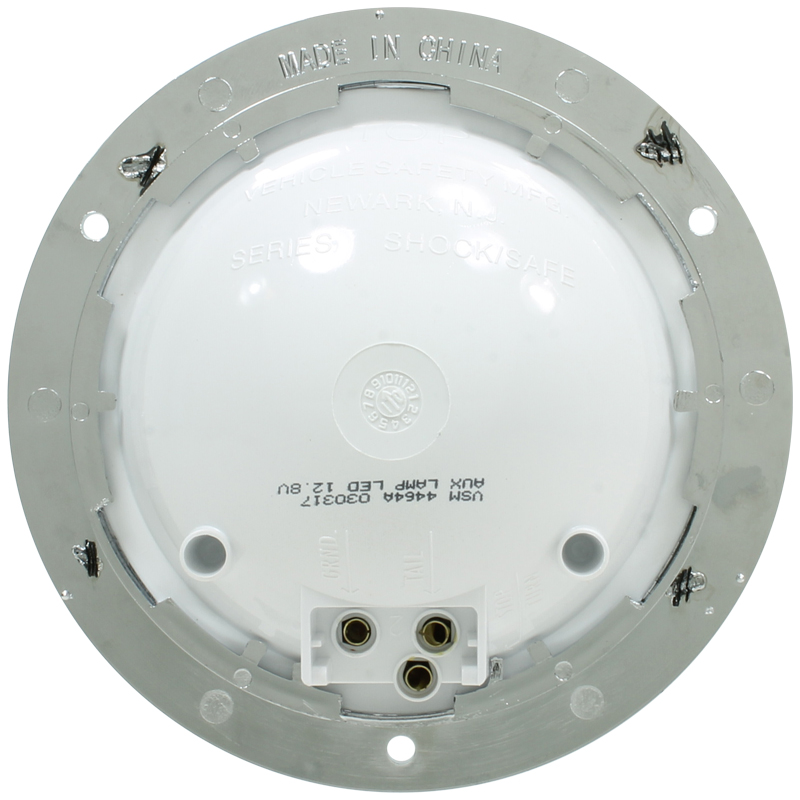

VSM4459 Red S/T/T Lamp with Chrome Flange Mount

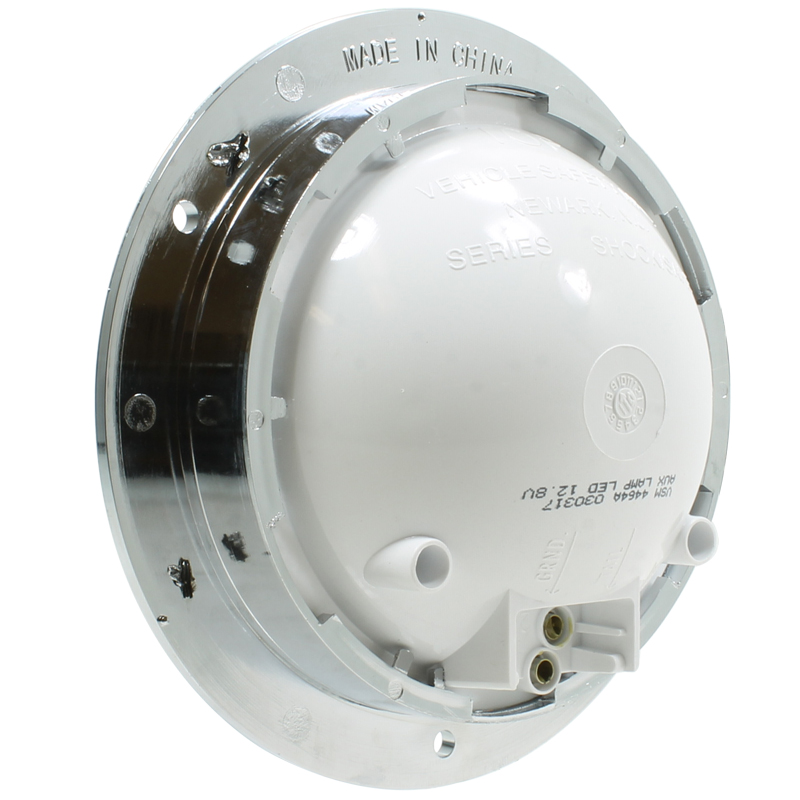

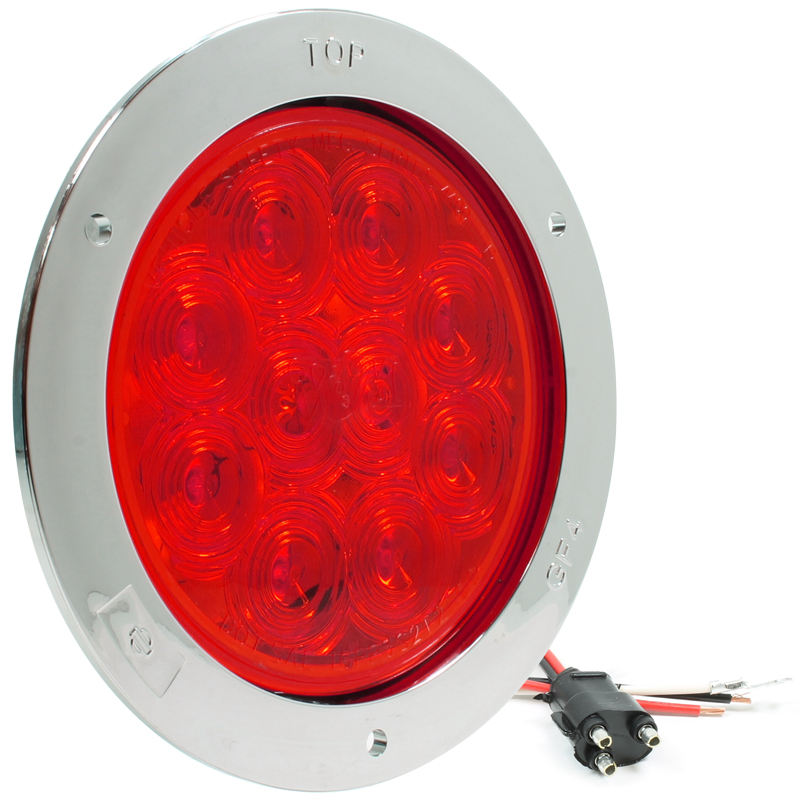

4459 10-Diode Red S/T/T Lamp with Chrome Flange Mount

Click image to enlarge...

More Images

4459 10-Diode Red S/T/T Lamp with Chrome Flange Mount 4459 10-Diode Red S/T/T Lamp with Chrome Flange Mount 4459 10-Diode Red S/T/T Lamp with Chrome Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base

VSM4459RC Red S/T/T Lamp with Chrome Flange Mount

4459RC 10-Diode Red S/T/T Lamp with Clear Lens and Chrome Flange Mount

Click image to enlarge...

More Images

4459RC 10-Diode Red S/T/T Lamp with Clear Lens and Chrome Flange Mount 4459RC 10-Diode Red S/T/T Lamp with Clear Lens and Chrome Flange Mount 4459RC 10-Diode Red S/T/T Lamp with Clear Lens and Chrome Flange Mount 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into 4" Flange Mount
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base

VSM44544 High-Diode Red Turn Signal/Parking Lamp

44544 High-Diode Red Turn Signal/Parking Lamp

Click image to enlarge...

More Images

44544 High-Diode Red Turn Signal/Parking Lamp 44544 High-Diode Red Turn Signal/Parking Lamp 44544 High-Diode Red Turn Signal/Parking Lamp 9124 Double-Contact Pigtail Harness (Included with VSM44544A)

Click images to enlarge...

Features

  • Product Dimensions
  • 4.3” (W) x 4.3” (H) x 1.75” (D) Lamp
  • Product Installation
  • Mounts Into Standard Grommet
  • Product Construction
  • Polycarbonate Lens and Housing
  • Sonically Welded Lens/Base
  • Other Product Details
  • 24 Super-Flux Diodes
  • Current Draw .42 A at 13.5V
  • Includes VSM44644 Lamp
  • Includes VSM9127 Grommet
  • Includes VSM9124 Pigtail
  • 3 Year Warranty

VSM4468RF / VSM4468RFD Reflex Flange 4-inch S/T/T Lamp

VSM4468RF Reflex Flange 4-inch S/T/T Lamp

Click image to enlarge...

More Images

Reflex Flange 4-inch S/T/T Lamp Reflex Flange 4-inch S/T/T Lamp Reflex Flange 4-inch S/T/T Lamp Reflex Flange 4-inch S/T/T Lamp

Click images to enlarge...

Features

  • Product Dimensions
  • 5.5” (W) x 5.5” (H) x 1.5” (D) Lamp
  • Retail Package Available
  • Product Installation
  • Flush-Mount Design Protects Lamp
  • Three-Hole Mounting Pattern
  • Product Construction
  • Sonically Sealed Lens/Housing
  • RED PMMA Lens
  • White ABS Housing
  • Black ABS Bezel
  • Product Wiring
  • Two-Contact Power Input
  • Uses VSM9124 Pigtail
  • Other Product Details
  • 10-Piece Super Flux LED
  • Epoxy-Sealed Electronics
  • Current Draw .193 / .063 A at 12.8V
  • 9V-16V Operating Voltage
  • 3 Year Warranty
  • Photometric Regulations
  • SAE J1398
  • SAE J585e
  • SAE J592e
  • SAE J594f

Stop/Tail/Turn Signal Lamps (Light Only)

VSM4440 4" Red S/T/T

VSM4440 low-profile 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM4464 4" Red S/T/T

VSM4464 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM4464RC 4" Red S/T/T

VSM4464RC 4-inch 10-diode red stop/tail/turn signal lamp with clear lens

Click image to enlarge...

VSM4467 4" Red S/T/T

VSM4467 4-inch 10-diode red stop/tail/turn signal lamp with grey flange

Click image to enlarge...

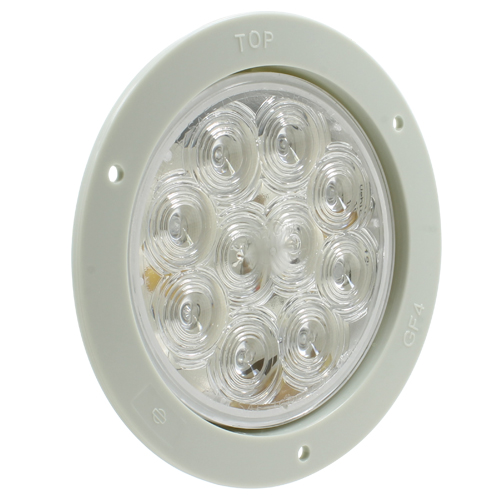

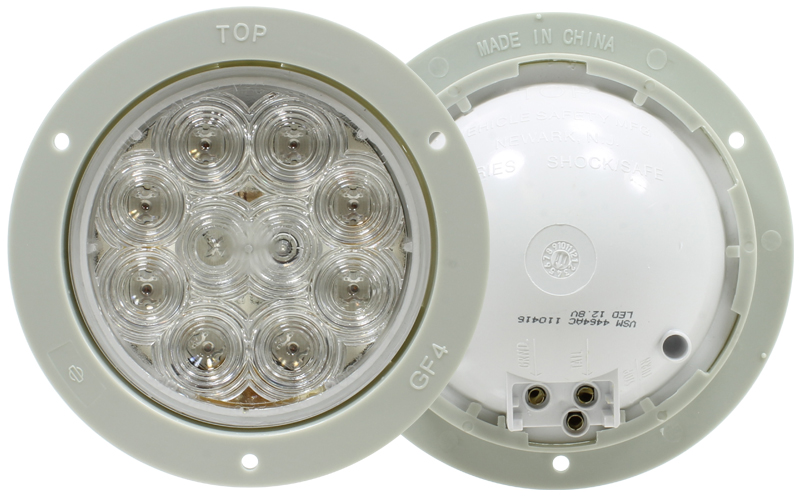

VSM4467RC 4" Red S/T/T

4467RC 10-Diode Red S/T/T Lamp with Clear Lens and Grey Flange Mount

Click image to enlarge...

VSM4468 4" Red S/T/T

VSM4468 4-inch 10-diode red stop/tail/turn signal lamp with black flange

Click image to enlarge...

VSM4468RC 4" Red S/T/T

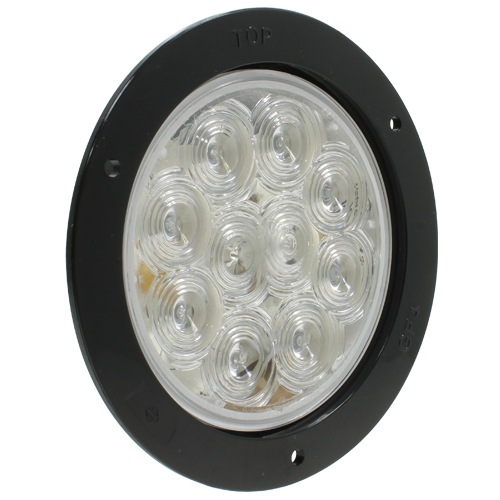

4468RC 10-Diode Red S/T/T Lamp with Clear Lens and Black Flange Mount

Click image to enlarge...

VSM4469 4" Red S/T/T

VSM4469 4-inch 10-diode red stop/tail/turn signal lamp with chrome flange

Click image to enlarge...

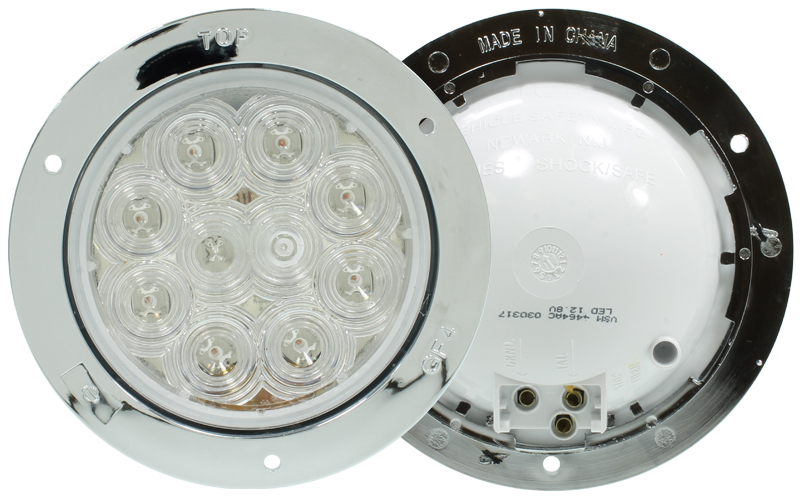

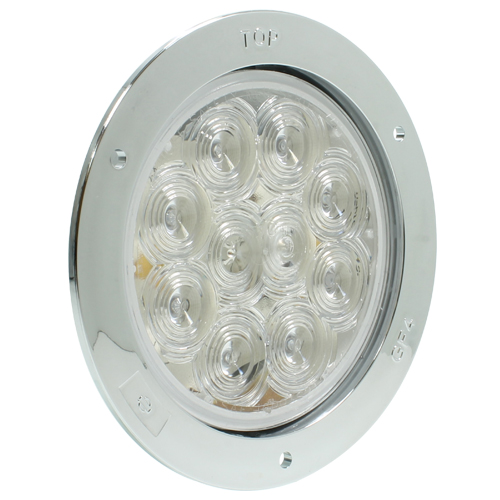

VSM4469RC 4" Red S/T/T

4469RC 10-Diode Red S/T/T Lamp with Clear Lens and Chrome Flange Mount

Click image to enlarge...

VSM44644 4" Red S/T/T

VSM44644 4-inch 24-diode red turn signal and parking light

Click image to enlarge...

VSM44644RC 4" Red S/T/T

VSM44644AC 4-inch 24-diode red turn signal and parking light with clear lens

Click image to enlarge...

VSM4468RF 4" Red S/T/T

VSM4468RF reflective flange-mount 4-inch 10-diode red stop/tail/turn signal lamp

Click image to enlarge...

VSM45644 Rectangle S/T/T

VSM45644 rectangular red 4500-series stop/tail/turn signal lamp

Click image to enlarge...
